The floor plans and measurements of an off-the-plan purchase provide a precise representation of what the finished home will look like.

Floor plans shown in marketing materials are easy to read, but the house plans provided during a consultation are more detailed. Understanding how to read a house plan should be an essential part of the decision-making process before buying off-the-plan.

This guide breaks down what you need to know about reading house plans as a first-time buyer.

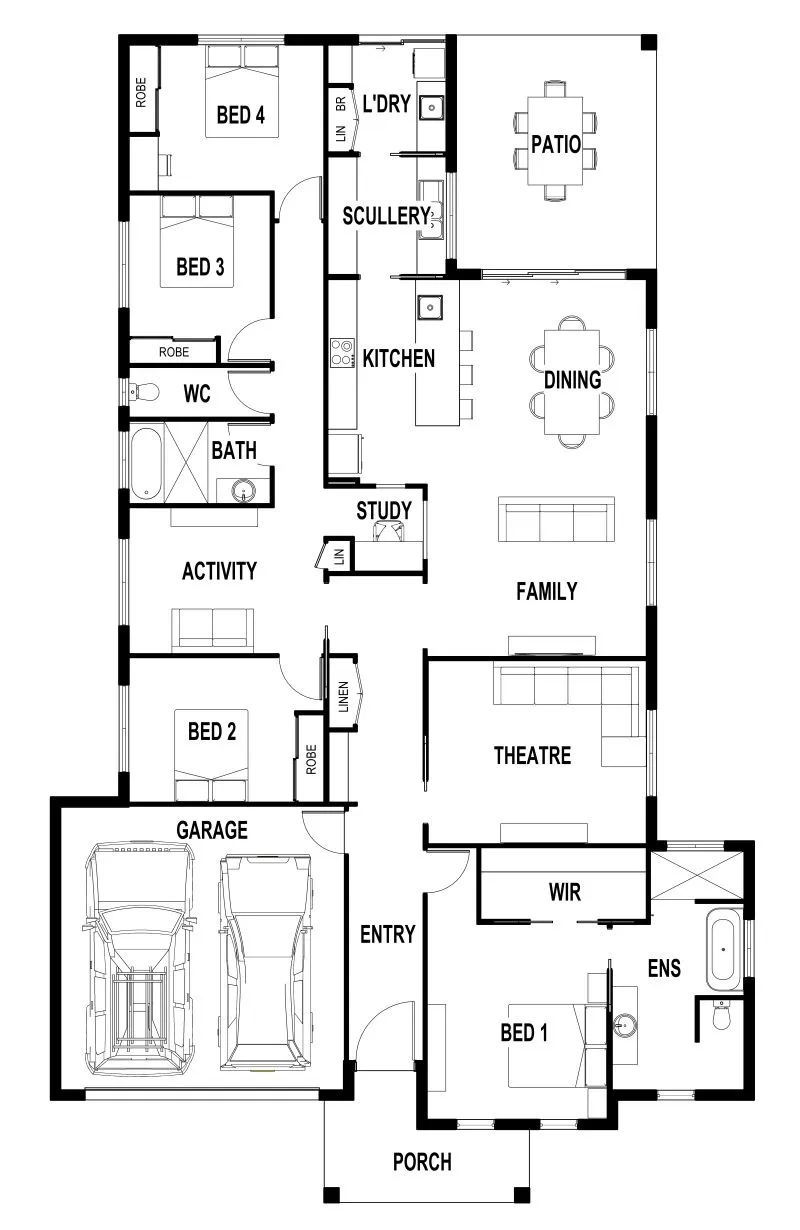

Understanding Floor Plans

The floor plan is the document you will spend the most time reviewing. Rather than trying to take in the whole floor plan at once, you should review each room individually.

The best way to visualise a floor plan is to start at the front door and do an imaginary walkthrough of the layout. Consider the line of sight from the hallway and the proximity of rooms to common areas like bathrooms and the kitchen.

Measurements and Scale

In Australia, block size is measured in square metres. In a layout plan, wall dimensions and the sizes of door and window openings are shown in millimetres. For instance, a bedroom marked as 3600 x 3000 on the plan is 3.6 x 3.0 metres.

House Orientation

The orientation of the house will determine which rooms receive natural light and how effectively the home can be heated or cooled naturally.

Most plans will include a north point indicator, a simple compass arrow that tells you which direction the home faces. Homes in North Queensland are built to be north or north-east facing - this orientation captures optimal sunlight for solar systems while minimising direct sun exposure for indoor spaces.

Walls, Doors, and Windows

On the floor plan, walls are marked by thick lines, and doors are depicted by a thin line and an arc showing the direction of the swing.

Windows appear as a break in the wall line, often with three parallel lines to indicate the glazing.

Ceiling Height

Ceiling height is often not shown on the floor plan. Ceiling measurements and angles are contained in a separate document for elevation and a cross-section of the build.

Ceiling height has a significant impact on how a room feels. A room with a 2.7 metre ceiling will feel noticeably more spacious than a standard 2.4 metre ceiling, even if the floor area is identical.

During a consultation with a builder, ask to review the elevations and cross-sections alongside the floor plan to get a complete picture of the space.

What Is Not Included in Floor Plans

Furniture

Floor plans are rarely drawn with furniture included, and when they are, it is for indicative purposes only. A room that appears generously sized on paper may feel considerably tighter once a bed, bedside tables, and wardrobe are in place.

Fixtures

Items such as hot water systems, air conditioning units, and similar fixtures are often omitted from floor plans entirely, or shown only in a site plan or services document. Hot water systems in particular can take up a surprising amount of space, whether located externally, in a laundry, or in a roof cavity.

Lighting and Powerpoints

Standard floor plans do not show the position of lights, power points, or switches. This information is contained in a separate electrical plan.

The placement of power points has a direct impact on how you will arrange furniture and use each room. A bedroom with power points only on one wall, for instance, limits where a bed can be positioned without running extension cords across the room.

The Importance of Viewing Display Homes

Floor plans, no matter how detailed, cannot present a complete picture of how the house will feel to live in.

There is no substitute for walking through a display home built from the same or a similar design. Visiting a display home bridges the gap between what exists on paper and what you will actually experience in the finished space.

At Keir Constructions, we provide buyers with a detailed breakdown of the floor plans for our house and land packages in Townsville. We also have display homes where buyers can review the layout of the house in-person to make an informed decision about their future home.
